Tire-type Welding Robot
Welding Wire:
Welding Wire Diameter: ф0.8 mm ~ ф1.6 mm
Welding Method:
Gas Metal Arc Welding (GMAW)
Application Areas:
Industrial Welding Applications: Custom Large Component Welding, Outdoor Large Component Welding, On-site Maintenance & Repair, Outdoor Welding; applicable to industries including Transformer, Vehicle Transportation, Electric Furnace, Shipbuilding, Wind Power, Steel Structure, Chemical, Environmental Protection, Container, Energy Storage Tank, and Crane Manufacturing.
WhatsApp:
+86 158 3822 4227
Get a quote
Product Details

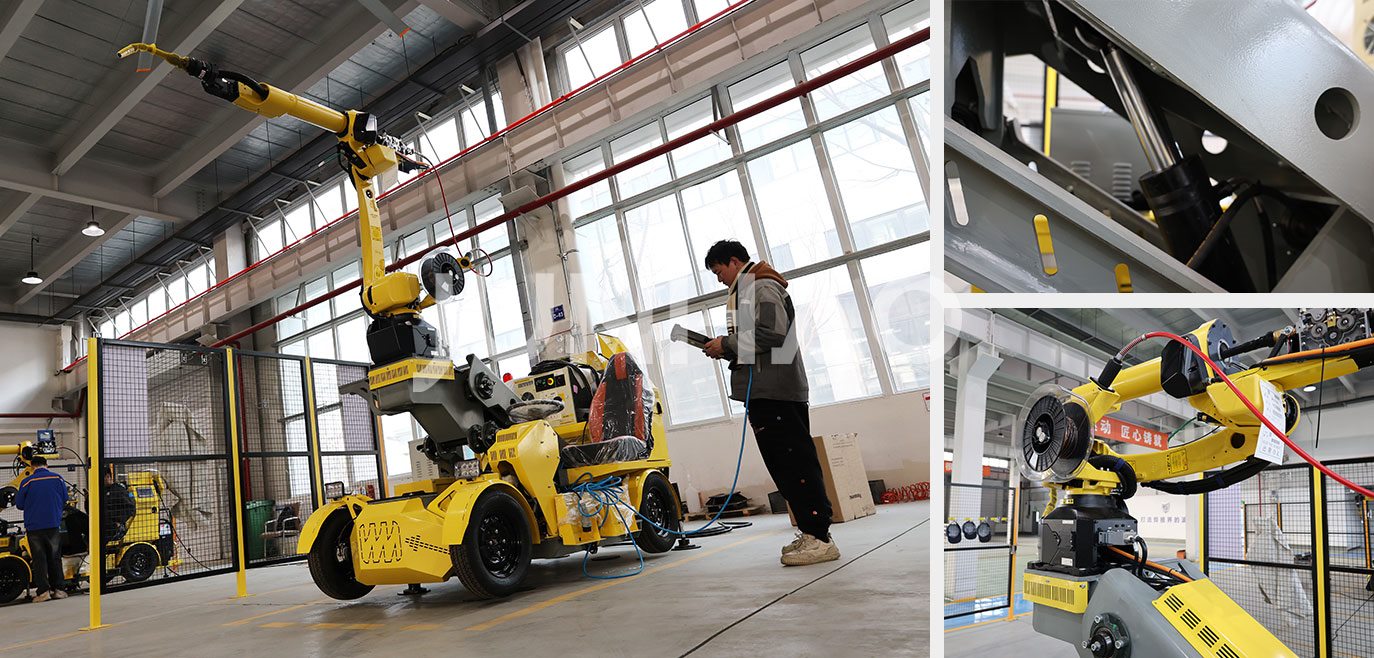

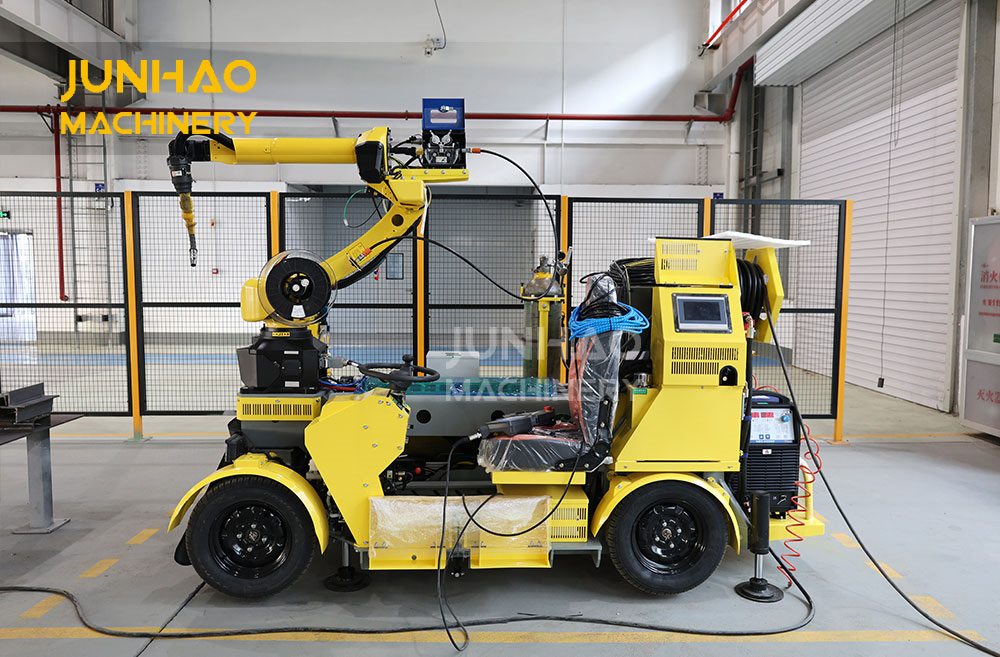

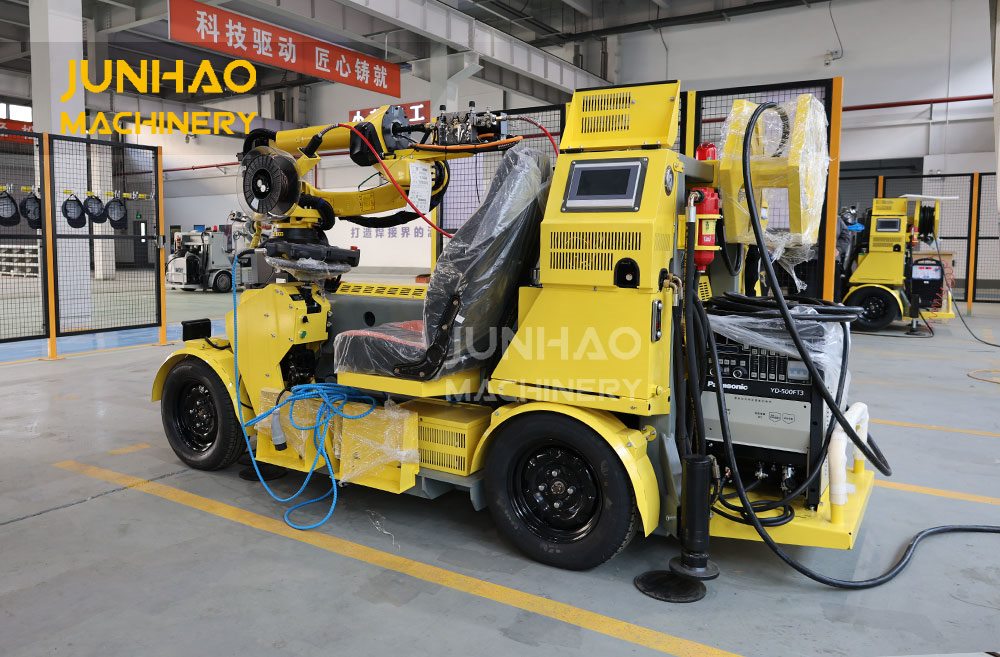

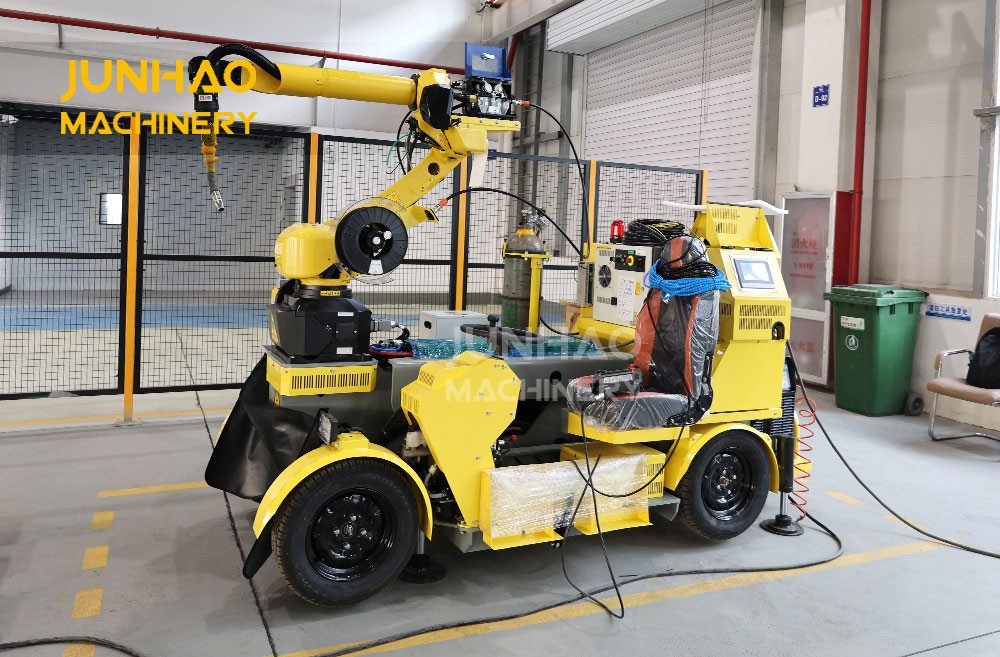

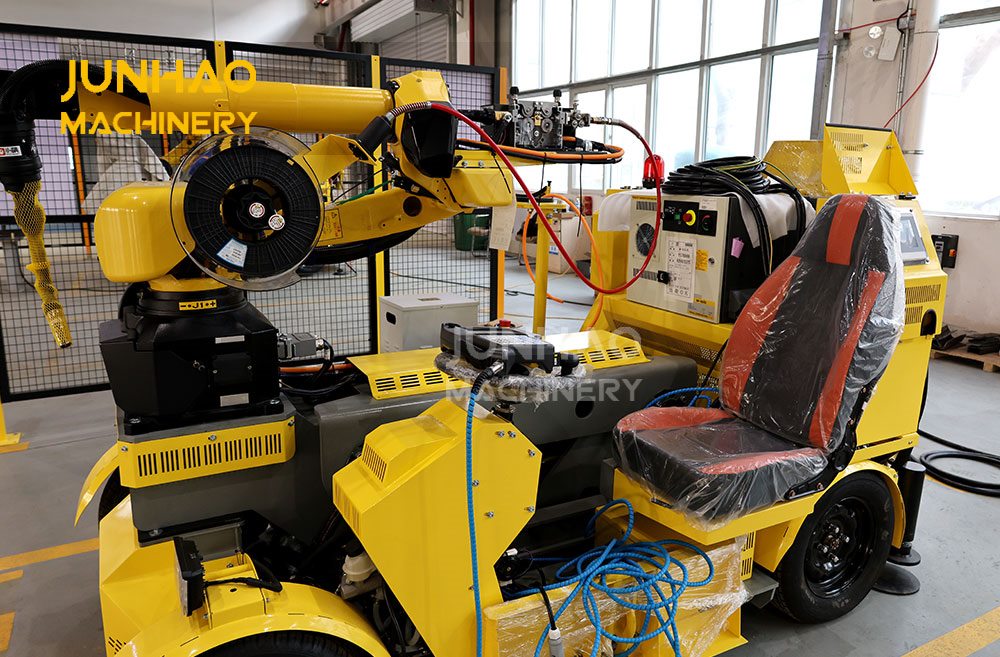

The tire-type welding robot (Model WMM-10iD/8LHH500) is a mobile welding device tailored for large workpieces: It boasts flexible mobility (10km/h travel speed, 15-30km endurance, 4800mm minimum turning radius), eliminating fixed workstations to cut handling costs for large workpieces; it supports full-position welding (horizontal, flat, vertical, overhead), with a maximum 3800mm horizontal width and 3725mm vertical height to cover multi-scenario needs of large workpieces; its ±0.03mm repeat positioning accuracy ensures weld quality and reduces rework losses; equipped with 26.8KW system power, 4 lithium batteries and a cooling water tank, it enables stable long-duration continuous operation, while its 1780KG robust body suits heavy-load scenarios.
Product Specifications
| Name | Tire-type Welding Robot |
|---|---|
| Model | WMM-10iD/8LHH500 |
| Net Weight | 1790KG |
| Dimensions | 2830×1605×1550 |
| Minimum Turning Radius | 4800mm |
| Battery Parameters | 48V,70AH |
| Number of Batteries | 1 |
| Maximum Safe Driving Speed | 10km/h |
| Range | 15-20Km（Winter）20-30Km（Summer） |
| Maximum Horizontal Welding Width | LT650-H3800mm，LT：Distance from the front of the car ，H：Vertical welding Height |
| Maximum Vertical Welding Height | LT915-W3725mm，LT：Distance from the front of the car，W：Horizontal welding height |
| System Power | 26.8KW |
| Cooling Circulating Water Tank Power | 120W |
| Repeat Positioning Accuracy | ±0.03mm |
| Welding Method | Gas metal arc welding |
| Shielding gas | 100% CO2 OR 80% Ar + 20% CO2 |
| Applicable welds | Flat welding, vertical welding, multi-layer and multi pass welding, groove butt welding |
| Welding Wire | ∅0.8mm-1.6mm |
| Robot Body | FANUC M10iD/8L |
| Control Cabinet Model | R-30iB Mate Plus |
