Tracked Welding Robot
Maximum Arm Span:
LT650-H4012 mm
Welding Wire:
Wire diameter: φ0.8mm ～ φ1.6mm
Welding Method:
Gas Metal Arc Welding (GMAW)
Application Areas:
Industrial Welding Applications: Custom Large Component Welding, Outdoor Large Component Welding, On-site Maintenance & Repair, Outdoor Welding; applicable to industries including Transformer, Vehicle Transportation, Electric Furnace, Shipbuilding, Wind Power, Steel Structure, Chemical, Environmental Protection, Container, Energy Storage Tank, and Crane Manufacturing.
WhatsApp:
+86 158 3822 4227
Get a quote
Product Details

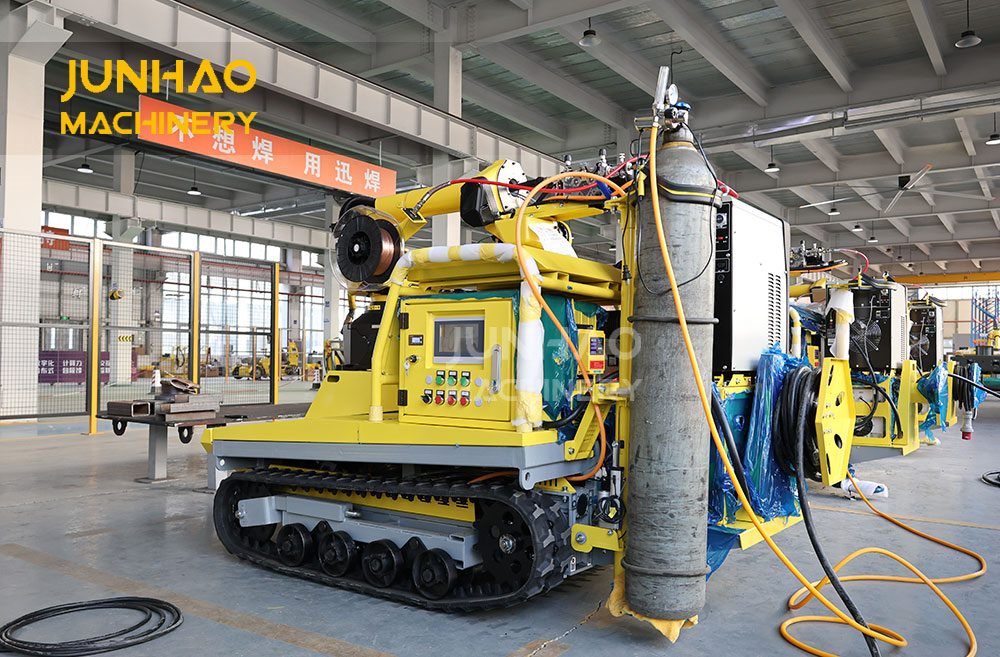

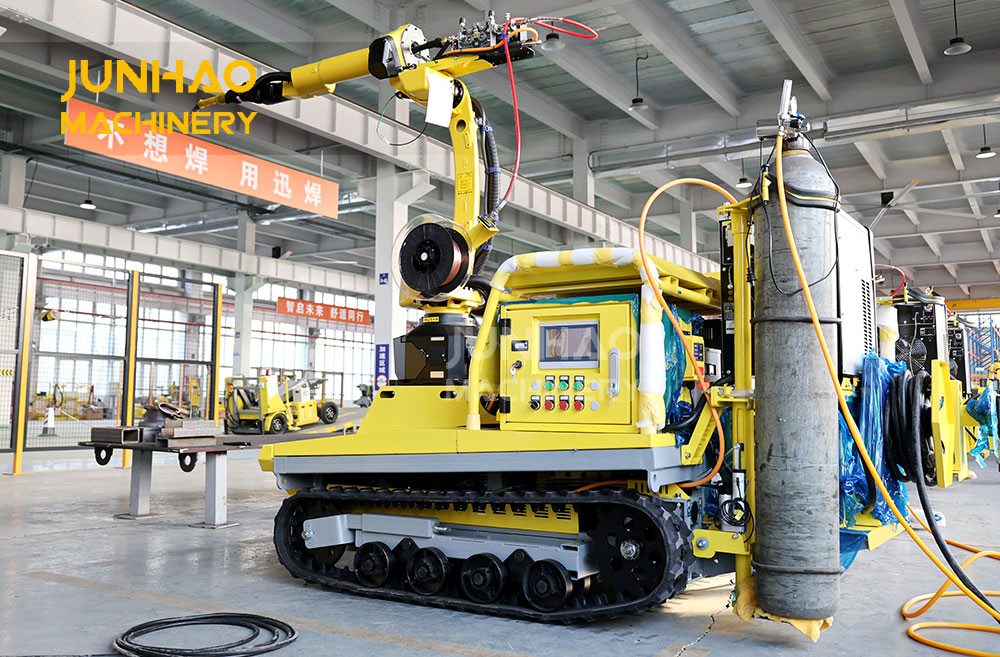

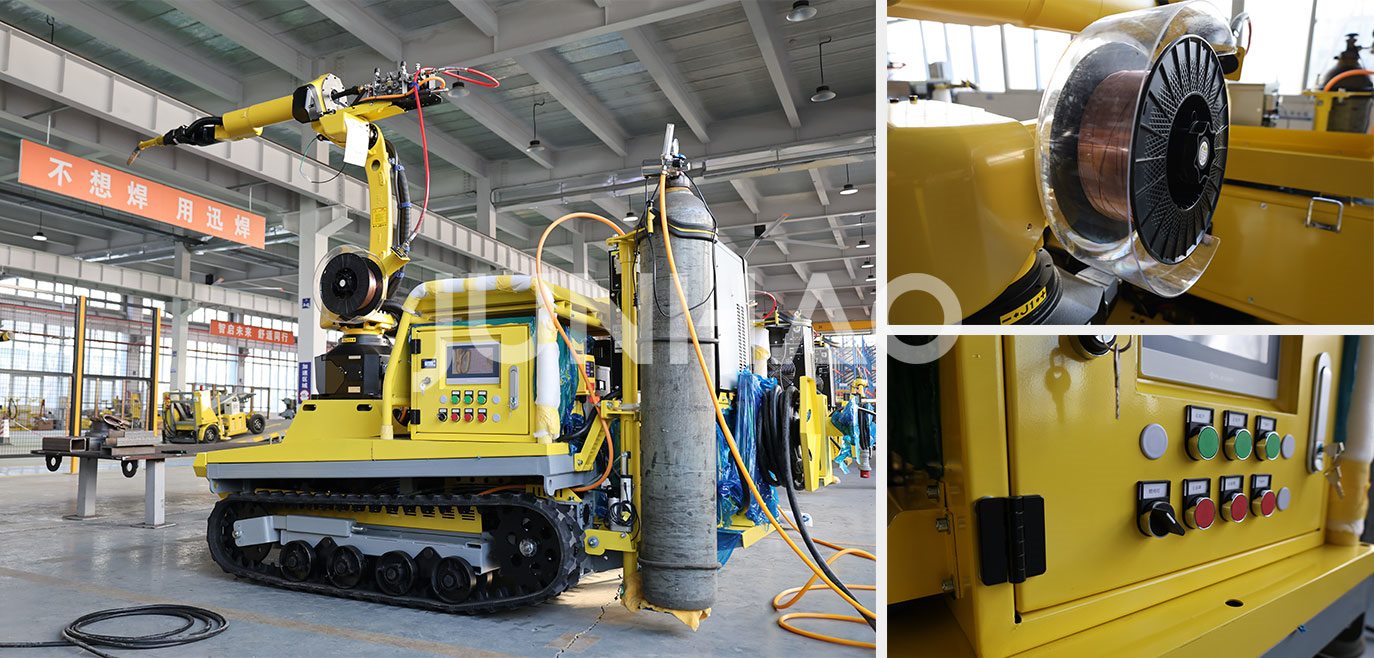

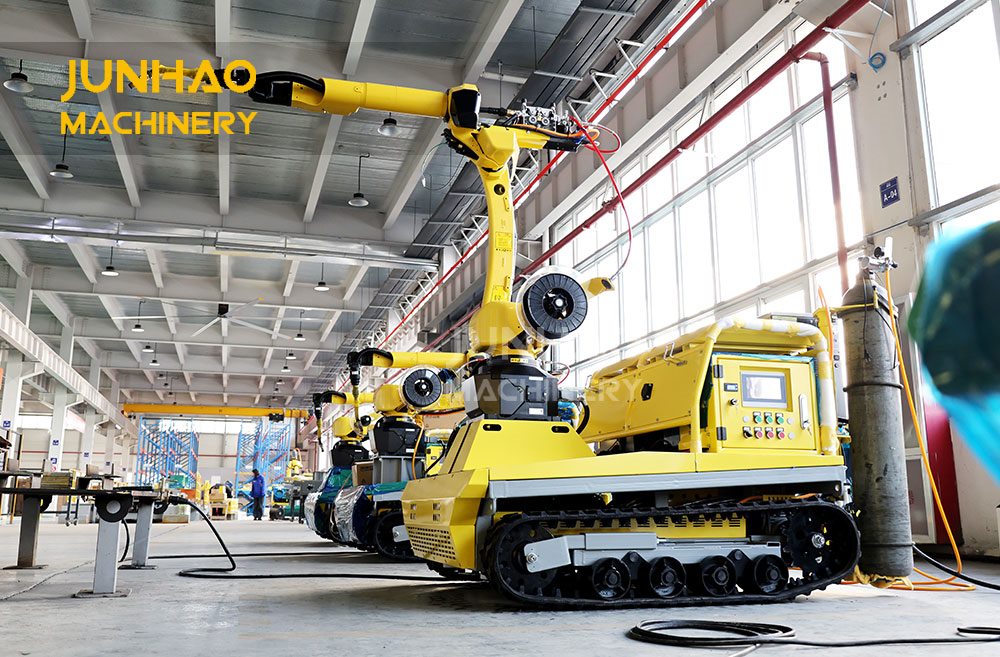

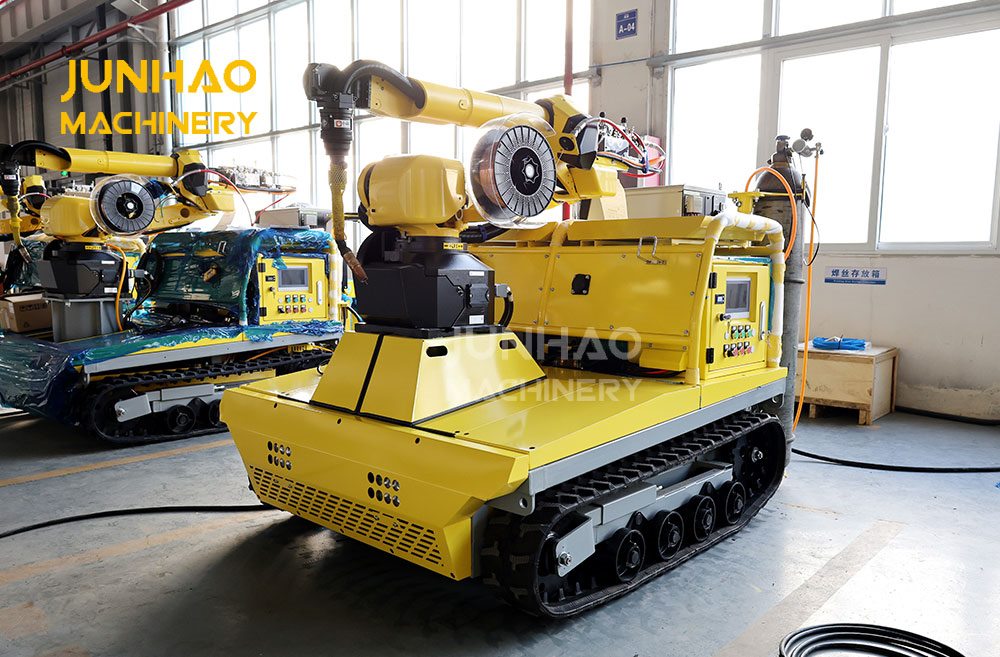

TheTracked Welding Robot (Model WMM-10iD/8LHF500) is a self-propelled tracked welding device tailored for large workpieces: It enables flexible on-site movement with a 3km/h travel speed and 19KM endurance, eliminating fixed workstations to adapt to multiple operating environments; it supports full-position welding (horizontal, flat, vertical, overhead), with a maximum 4012mm horizontal width and 3270mm vertical height to cover multi-scenario welding needs of large workpieces; its ±0.03mm repeat positioning accuracy ensures weld quality and reduces rework losses; equipped with a 48V 140AH battery and 26.8KW system power, it enables stable continuous operation, while its 1270KG robust body suits heavy-load scenarios.
Product Specifications
| Name | Tracked Welding Robot |
|---|---|
| Model | WMM-10iD/8 LHF500 |
| Net Weight | 1270KG |
| Dimensions | 2054×1385×1652mm |
| Minimum Turning Radius | 1100mm |
| Battery Parameters | 48V,140AH |
| Number Of Battery | 1 |
| Maximum Safe Driving Speed | 3km/h |
| Range | 19Km |
| Maximum Horizontal Weld Width | LT650-H4012mm，LT：Distance from the front of the car，H：Vertical welding height |
| Maximum Vertical Welding Height | LT915-W3270mm，LT：Distance from the front of the car，W：Horizontal welding height |
| System Power | 26.8KW |
| Repeat Positioning Accuracy | ±0.03mm |
| Welding Method | Gas metal arc welding |
| Shielding gas | 100% CO2 OR 80% Ar + 20% CO2 |
| Applicable welds | Flat welding, vertical welding, multi-layer and multi pass welding, groove butt welding |
| Welding Wire | ∅0.8mm-1.6mm |
| Robot Body | FANUC M10iD/8L |
| Control Cabinet Model | R-30iB Mate Plus |
